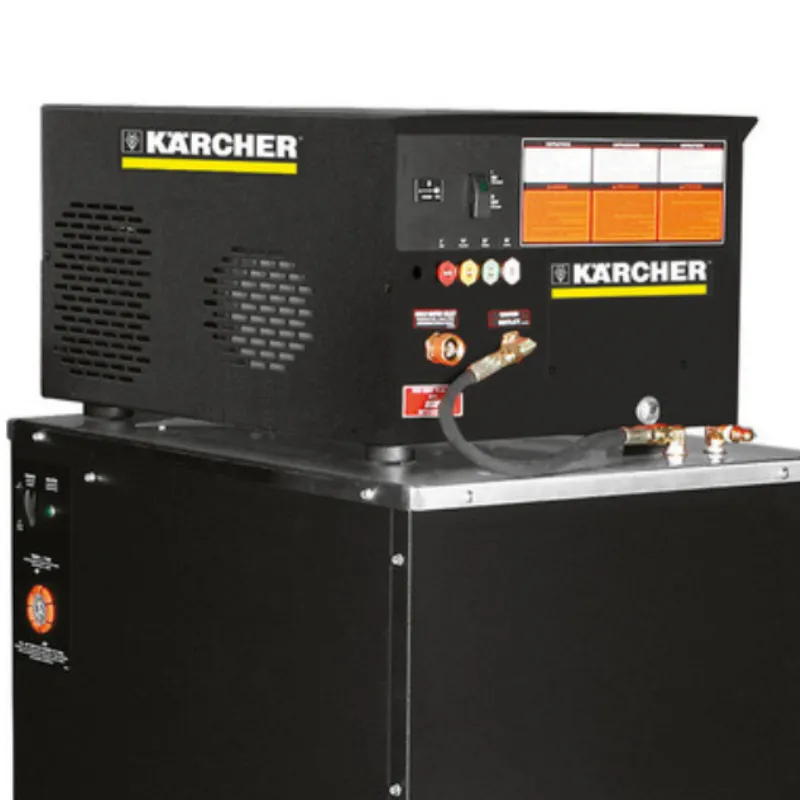

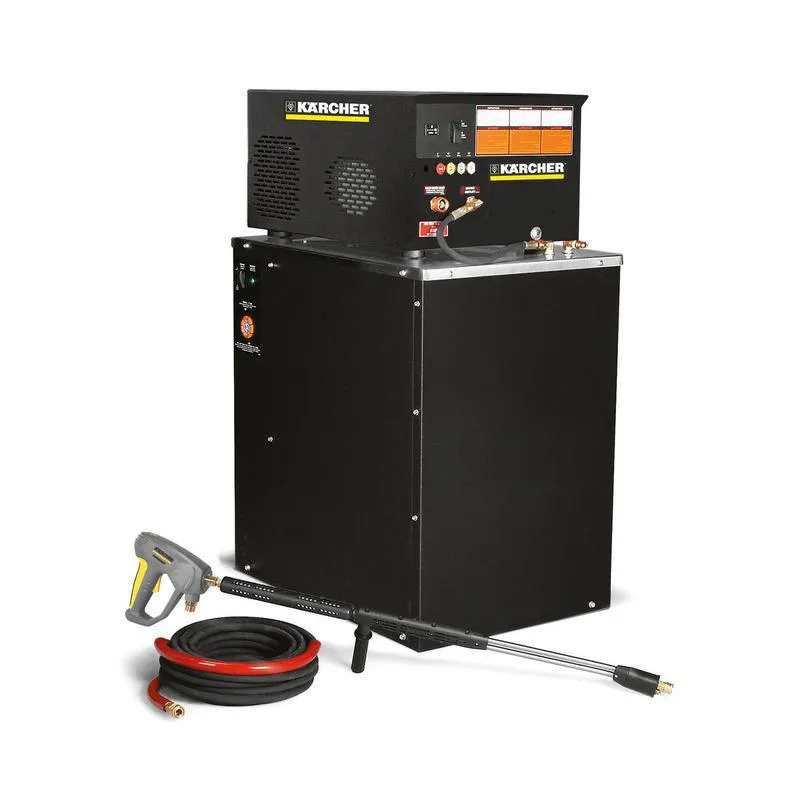

HDS CABINET

Cleaning technology for indoors.

This Kärcher all-electric hot water pressure washer introduces hot-water tank technology to deliver hot water on demand ideal for indoor cleaning. Water is heated by †owing through a coil inside
an 80-gallon water tank. Heating elements generate 138,000 BTU to produce hot water of up to 180°F. All models are ETL and CSA certified.

Features

• Heavy-duty, steel cabinets are protected by an epoxy powder coat ‹nish; upper cabinet ventilated for cool operation
• Thermal pump saver valve prevents damage by venting recirculated water
• Low-water flow switch prevents damage to heating elements due to lack of water
• Easy-to-attach detergent injector and four quick couplers nozzles
• Auto start function allows unit to be turned on with pull of the trigger
• EASY!Force gun with cruise control like technology - uses its own recoil force to hold the trigger down - so, no more sore hands after hours of use

Powerful & Durable

• Industrial-grade, tri-plunger, oil-bath, belt-drive, Kärcher pump with 7-year warranty and cast iron pulley system that features cool operating V-belts and an easy-to- adjust TrueTrak belt tension device.
• Heavy-duty, steel cabinets are protected by an epoxy powder coat finish; upper cabinet ventilated for cool operation.
• Thermal pump saver valve prevents damage by venting recirculated water.
• Nine heating elements (40.5 KW) are protected by an Incoloy alloy sheath so they do not come in contact with the pressurized water, which can cause scale build up.
• Industrial-duty magnetic motor starter for reliable operation.

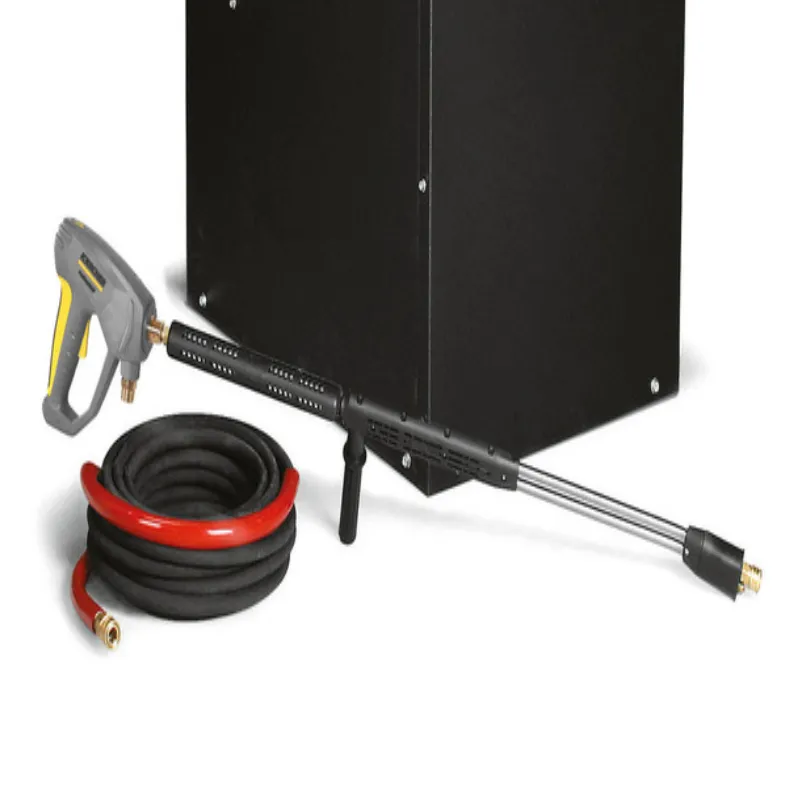

• 50 ft. of 1wire, non-marking hose rated for up to 4500 PSI; hose guard provides burst protection.
• Low-water flow switch prevents damage to heating elements due to lack of water

Smart Features

• Industrial-duty electric motor with thermal overload protection.
• Four quick-coupler nozzles are made of hardened stainless steel and mounted for easy operator access.
• Easy-to-attach detergent Injector for ease in introducing soap into the spray while cleaning.
• 7-day timer automatically turns off heating elements to conserve energy.
• EASY!Force trigger gun with cruise control like technology uses its own recoil force to hold the trigger down - so, no more sore hands after hours of use.
• ETL certified to the rigorous UL-1776 safety standards.
• Hour meter for easily monitoring hours of use and better scheduled maintenance.

Includes

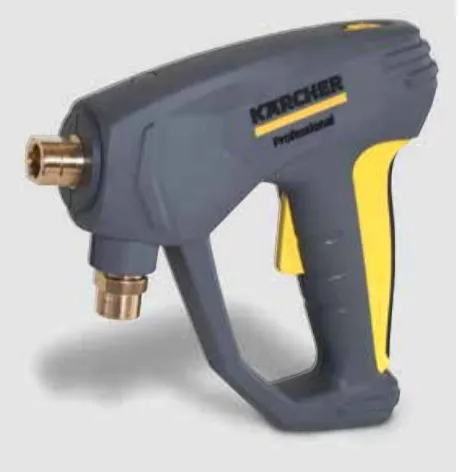

8.756-481.0 EASY!Force trigger gun (North American Model) - zero force required. Standard 1/4" connection for wand, 3/8" connection for hose.

Option (Factory Installed)

8.925-520.0 Time delay shutdown (replaces auto start-stop) (only for 460V units)
9.801-002.0 Pressure washer stainless steel cabinet (only for 460V units)

Please Note: NOT compatible with EASY!Lock
