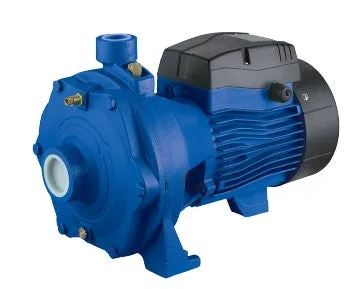

BIA-FCT150M CAST IRON TWIN STAGE CENTRIFUGAL PUMP CLEAN WATER 160L/MIN 57.5M 1500W 240V
Technical Specifications
| Brand | Bianco Pumpz |
| Product Type | Twin Stage Cast Iron Centrifugal Pump |
| Suitable For | Clean Water |
| Bar | 5.75 Bar |
| Amps | 11.5 Amps |
| Flow Range Category | b. 100 - 199 L/min |
| Flow Rate (L/min) | 160 L/min |
| Hp | 2.0 Hp |
| Kilo Watts | 1.5 kW |
| Head Range Category | b. 40 - 59 m |
| Max Head (m) | 57.5 m |
| Port Size Inlet | 1-1/2" Inlet |
| Port Size Outlet | 1" Outlet |
| Powered | Electric |
| Volts | 240 V |
| Warranty (months) | 24 Months |
Description
Close Coupled Cast Iron Motor Pump unit
- Corrosion resistant cast iron pump body and bracket cover with cataphoresis* treatment, aluminium pump support and 304 stainless steel impeller and shaft.
- Mechanical shaft seal.
- 240V single phase TEFC motor with in-built auto reset thermal overload.
- Motor support foot.
Applications
Suitable for industrial wash down, water transfer and tank filling. Suitable for fire fighting, HVAC, circulation and pressure boosting.
* Cataphoresis is an electrochemical coating process for metallic surfaces widely used in the industry due to its penetration and long life, either as a priming coat or finished paint for corrosion resistance.
1.5kW, 2.0hp, 240V, max hd 57m, max flow 160L/m.
Ports 1-1/2” BSPF In, 1” BSPF Out.
24 Month BIANCO Pumpz Warranty
