BIA-FC75M CAST IRON CENTRIFUGAL PUMP CLEAN WATER 100L/MIN 36M 750W 240V
Technical Specifications
| Brand | Bianco Pumpz |
| Product Type | Single Stage Cast Iron Centrifugal Pump |
| Suitable For | Clean Water |
| Bar | 3.6 Bar |
| Amps | 5.5 Amps |
| Flow Range Category | b. 100 - 199 L/min |
| Flow Rate (L/min) | 100 L/min |
| Hp | 1.0 Hp |
| Kilo Watts | 0.75 kW |
| Head Range Category | a. 0 - 39 m |
| Max Head (m) | 36 m |
| Port Size Inlet | 1" Inlet |
| Port Size Outlet | 1" Outlet |
| Powered | Electric |
| Volts | 240 V |
| Warranty (months) | 24 Months |
Description

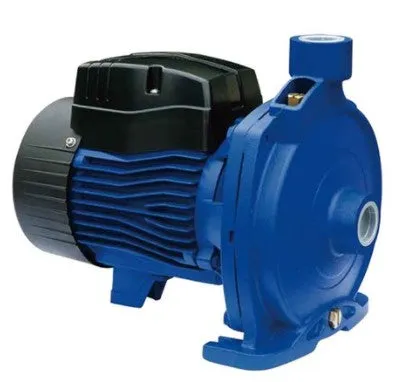

Close Coupled Cast Iron Motor Pump unit
- Corrosion resistant cast iron pump body and bracket cover with cataphoresis* treatment, aluminium pump support and 304 stainless steel impeller and shaft.
- Mechanical shaft seal.
- 240V single phase TEFC motor with in-built auto reset thermal overload.
- Motor support foot.
Applications
Suitable for industrial wash down, water transfer and tank filling. Suitable for fire fighting, HVAC, circulation and pressure boosting.
* Cataphoresis is an electrochemical coating process for metallic surfaces widely used in the industry due to its penetration and long life, either as a priming coat or finished paint for corrosion resistance.
0.75kW, 1.0hp, 240V, max hd 36m, max flow 100L/m.
Ports 1” BSPF In, 1” BSPF Out.
24 Month BIANCO Pumpz Warranty
