BIA-FC550T CAST IRON CENTRIFUGAL PUMP CLEAN WATER 500L/MIN 54M 5500W 415V
Technical Specifications
| Brand | Bianco Pumpz |
| Product Type | Single Stage Cast Iron Centrifugal Pump |
| Suitable For | Clean Water |
| Bar | 5.4 Bar |
| Amps | 13 Amps |
| Flow Range Category | f. 500 - 999 L/min |
| Flow Rate (L/min) | 500 L/min |
| Hp | 7.5 Hp |
| Kilo Watts | 5.5 kW |
| Head Range Category | b. 40 - 59 m |
| Max Head (m) | 54 m |
| Port Size Inlet | 2" Inlet |
| Port Size Outlet | 2" Outlet |
| Powered | Electric |
| Volts | 415 V |
| Warranty (months) | 24 Months |
Description

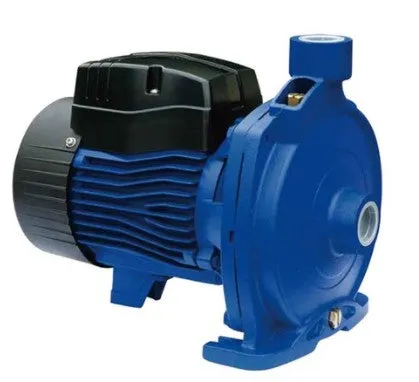

Close Coupled Cast Iron Motor Pump unit
- Corrosion resistant cast iron pump body and bracket cover with cataphoresis* treatment, aluminium pump support and 304 stainless steel impeller and shaft.
- Mechanical shaft seal.
- 240V single phase TEFC motor with in-built auto reset thermal overload.
- Motor support foot.
Applications
Suitable for industrial wash down, water transfer and tank filling. Suitable for fire fighting, HVAC, circulation and pressure boosting.
* Cataphoresis is an electrochemical coating process for metallic surfaces widely used in the industry due to its penetration and long life, either as a priming coat or finished paint for corrosion resistance.
5.5kW, 7.5hp, 415V, max hd 54m, max flow 500L/m.
Ports 2” BSPF In, 2” BSPF Out
*90 DAY LEAD TIME*
24 Month BIANCO Pumpz Warranty
